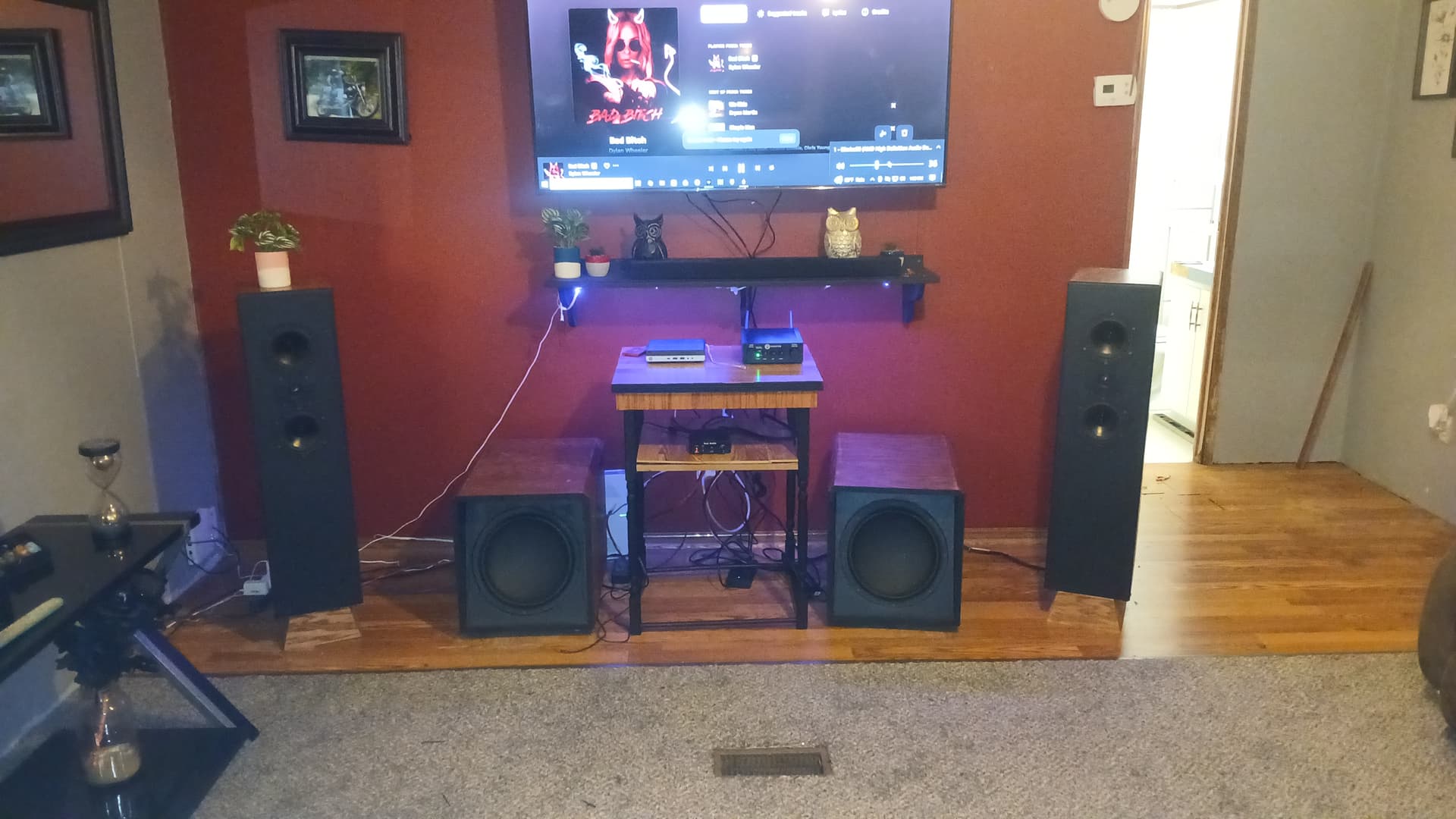

This is my build. The MTM towers are quarter wave T-lines that I designed and built. The mids are Dayton RS150P the tweeters are DC28FT also Dayton. The subs are Dayton MX12-22 Max-X high excursion in an enclosure based roughly off JL box but enough tweaks to make them my own. The towers are a couple years old. I just could never get the passive crossovers right. I’ve got a boxful of inductors, caps and resistors to show for my efforts. In about 4-5 hours of messing around in my 650 I have it sounding better than I ever did. I run it all from a mini PC. I DIY’d the table as well. None of it is erfect but still pretty proud of it being its my first build
2 Likes
Hi Jay, those look great if you have any pictures of you building them or maybe close-ups of the speakers or maybe measurements we would love to see them. I just looking from this picture they look really well done.

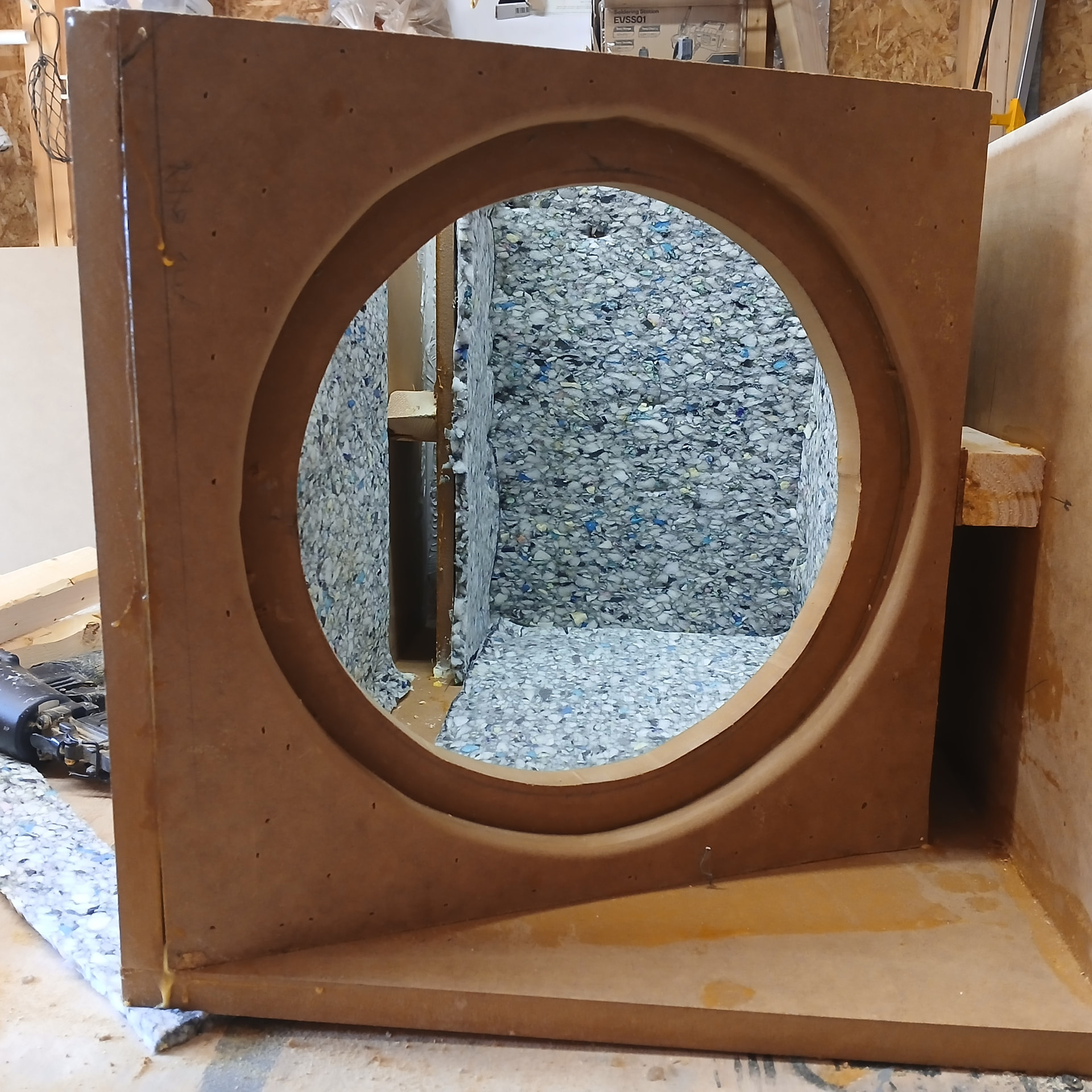

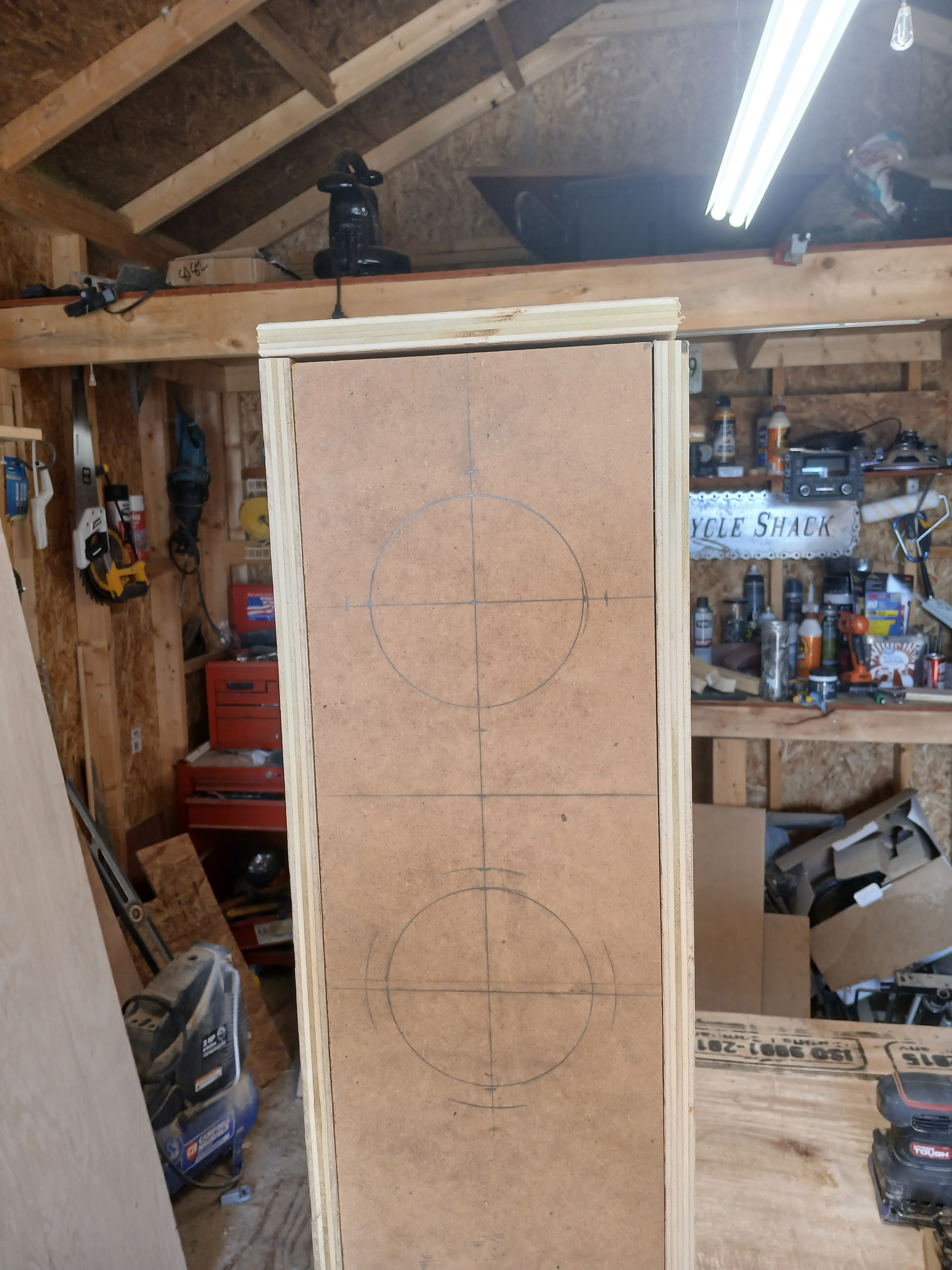

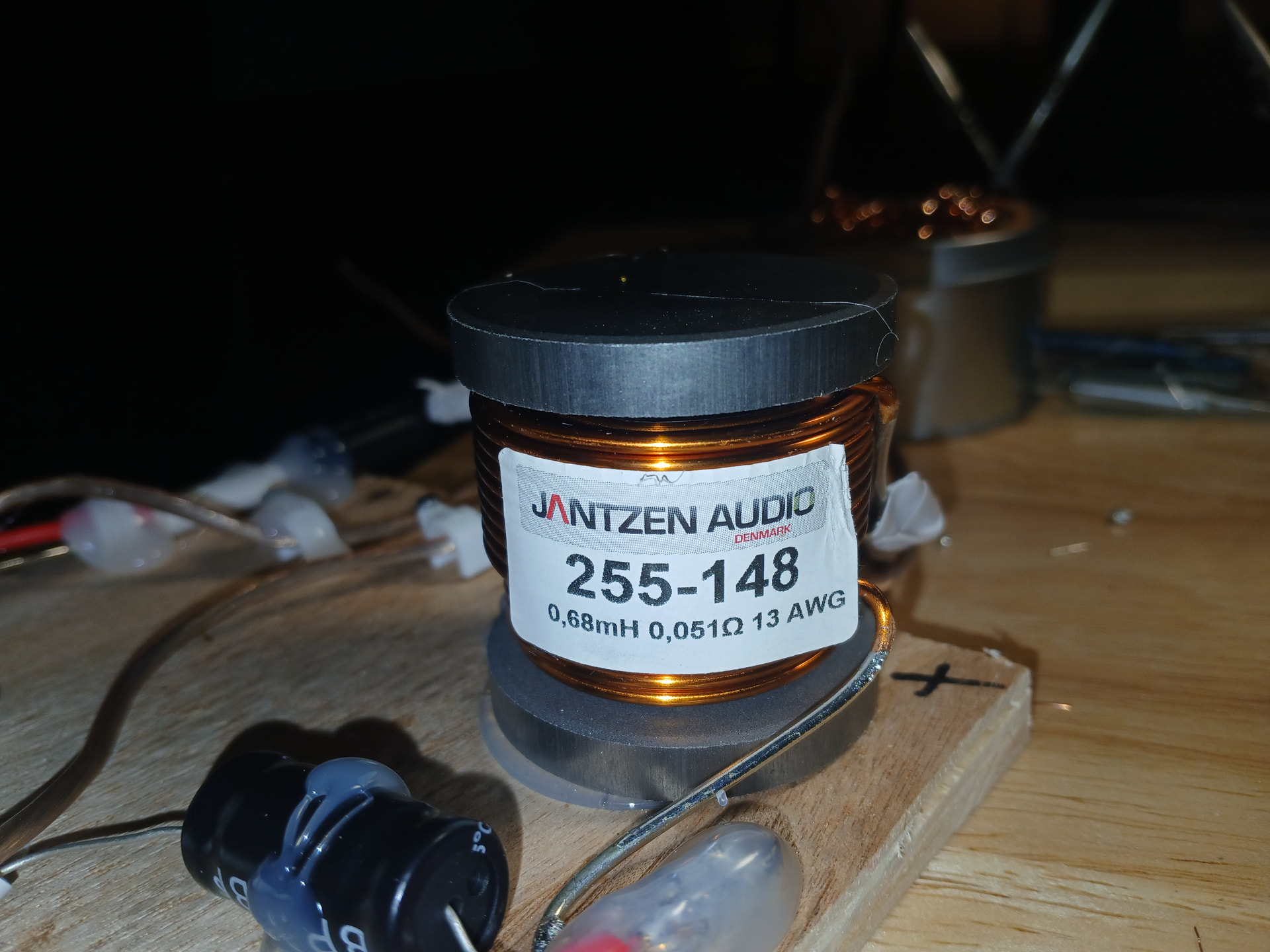

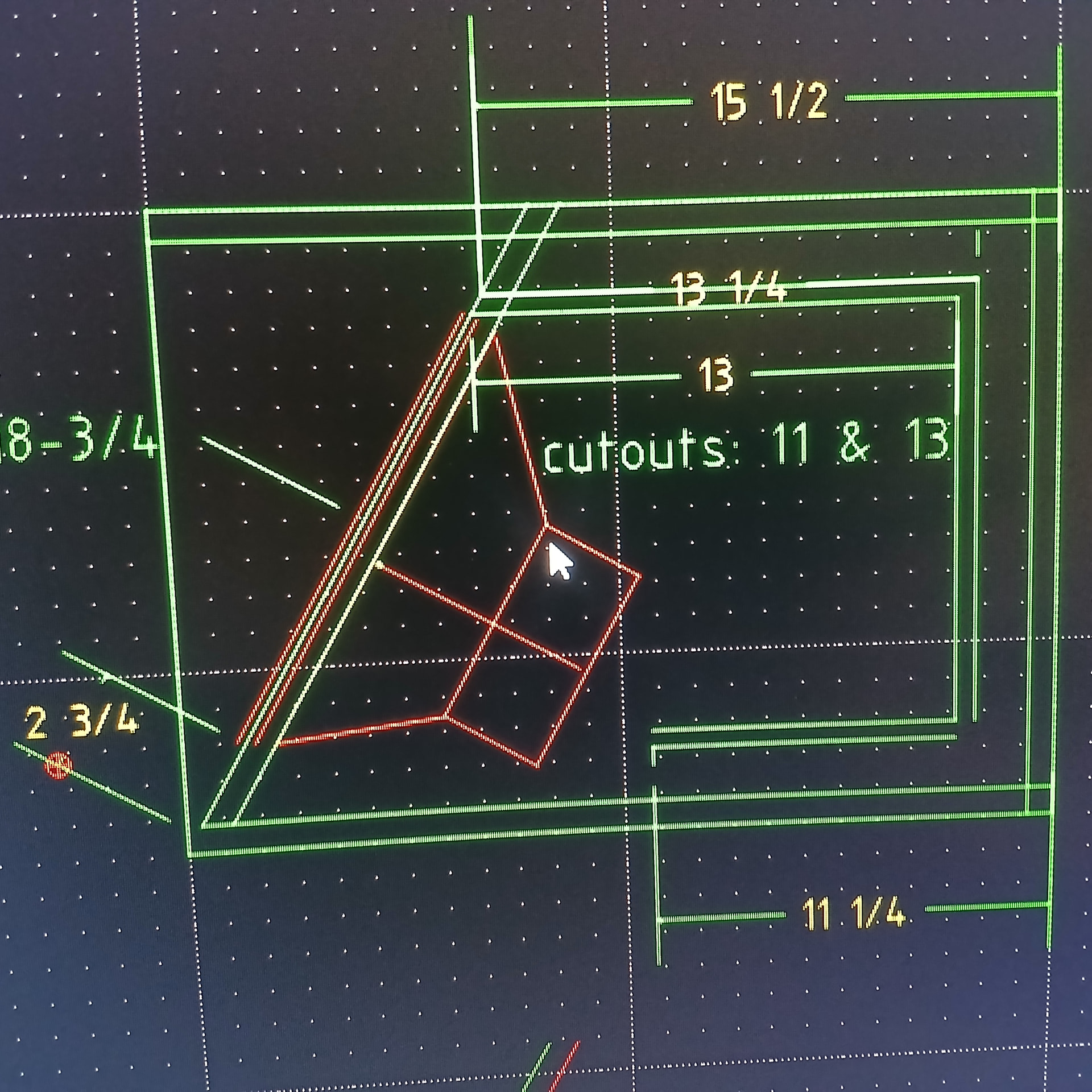

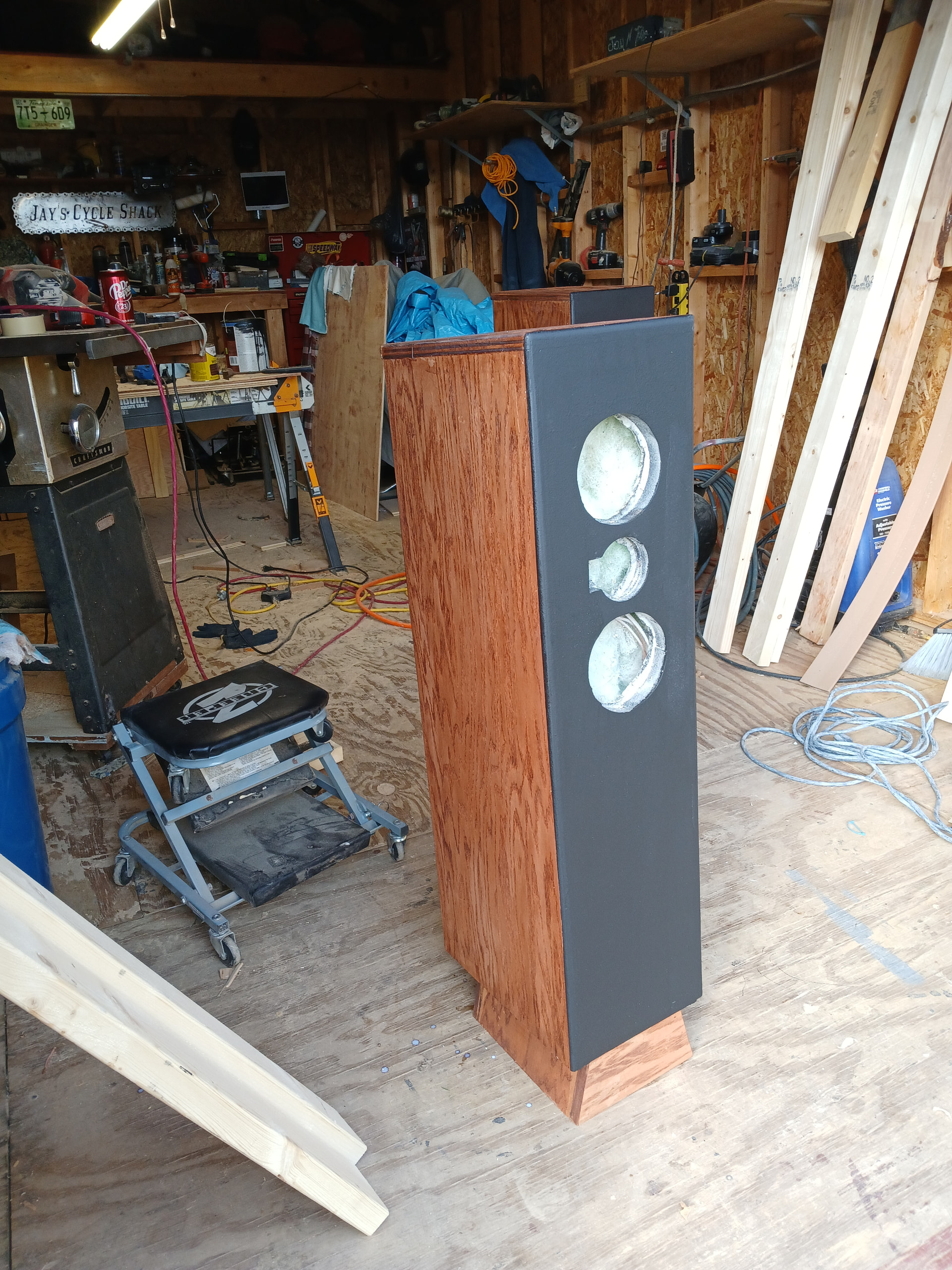

I didnt really take many pics. It never occured to me to be honest but i did take a couple of the towers when I laid out the cutouts and right after doing the finish. The subs I took a couple as well. I took a pic of an inductor on i want to say was the 2nd crossover try. These came out better than the first but still lacked something. I had the blueprints but for the towers but lost a hard drive and those with it. The pics i was able to get thanks to Google photos The subs were built a year after so I still have the plans for them. I just use librecad. I’ve never messed with sketchup
